Pair an Eko device with web pairing on the Eko Dashboard

Who is this for?

✓ Plan: SENSORA™ platform for enterprise institutions

✓ Role: Clinician, Site

Web pairing is used on the Eko Dashboard to connect an Eko device via Bluetooth to your web browser. You use it to run an assessment, take a recording, or initiate a live stream through the Dashboard. An Eko device must be paired before performing these actions.

Once your device is connected, your session will stay active until you end it or navigate to another screen in the Dashboard.

Note

Web pairing is only supported on Google Chrome or Microsoft Edge browsers.

Connect your Eko device

  1. Turn on your Eko device.

  2. Click the green action (+) button near the top right of the page.

    Screenshot 2024-12-05 at 3.48.28 PM (2).png

  3. Select Start Live Stream

    Screenshot 2024-12-05 at 3.49.00 PM (2).png

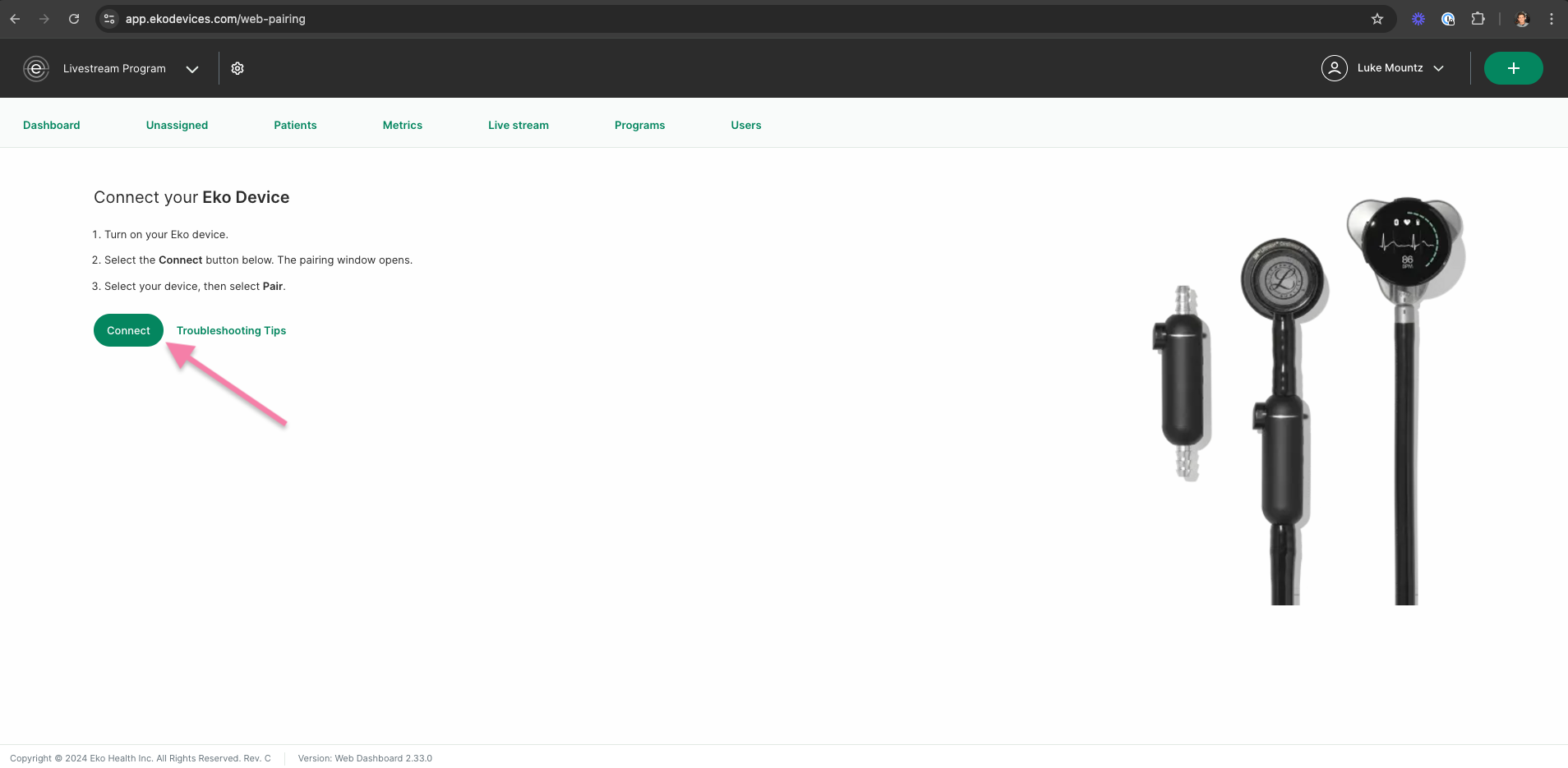

  4. From the Connect your Eko Device page, click Connect. A popup window appears. Select your Eko device and click Pair.

    Screenshot 2024-12-05 at 3.49.07 PM (2).png


    Screenshot 2024-12-05 at 3.49.15 PM (2).png

  5. If it’s the first time you’ve connected the device, your computer’s operating system may display a Bluetooth connection message. Confirm the connection.

  6. The web pairing screen confirms that your device is connected.

    Screenshot 2024-12-09 at 8.26.38 AM (2).png

  7. The web pairing screen shows your connected device. You can now proceed with an exam, recording, or live stream. See Initiate a live stream for more details.

    Screenshot 2024-12-09 at 8.28.28 AM (2).png

Tip

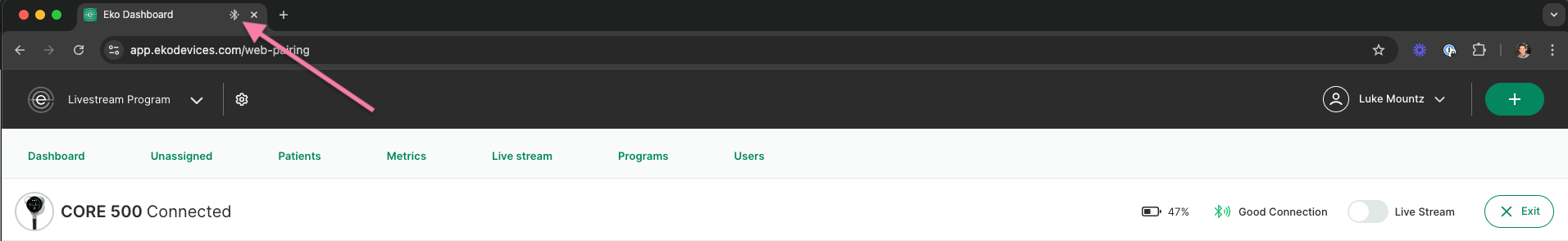

The browser tab shows a Bluetooth icon when that tab has a device connected on the web pairing screen.

Screenshot 2024-12-09 at 8.29.54 AM (2).png


Disconnect your device

There are several ways to disconnect your device:

  • Turn off the device.

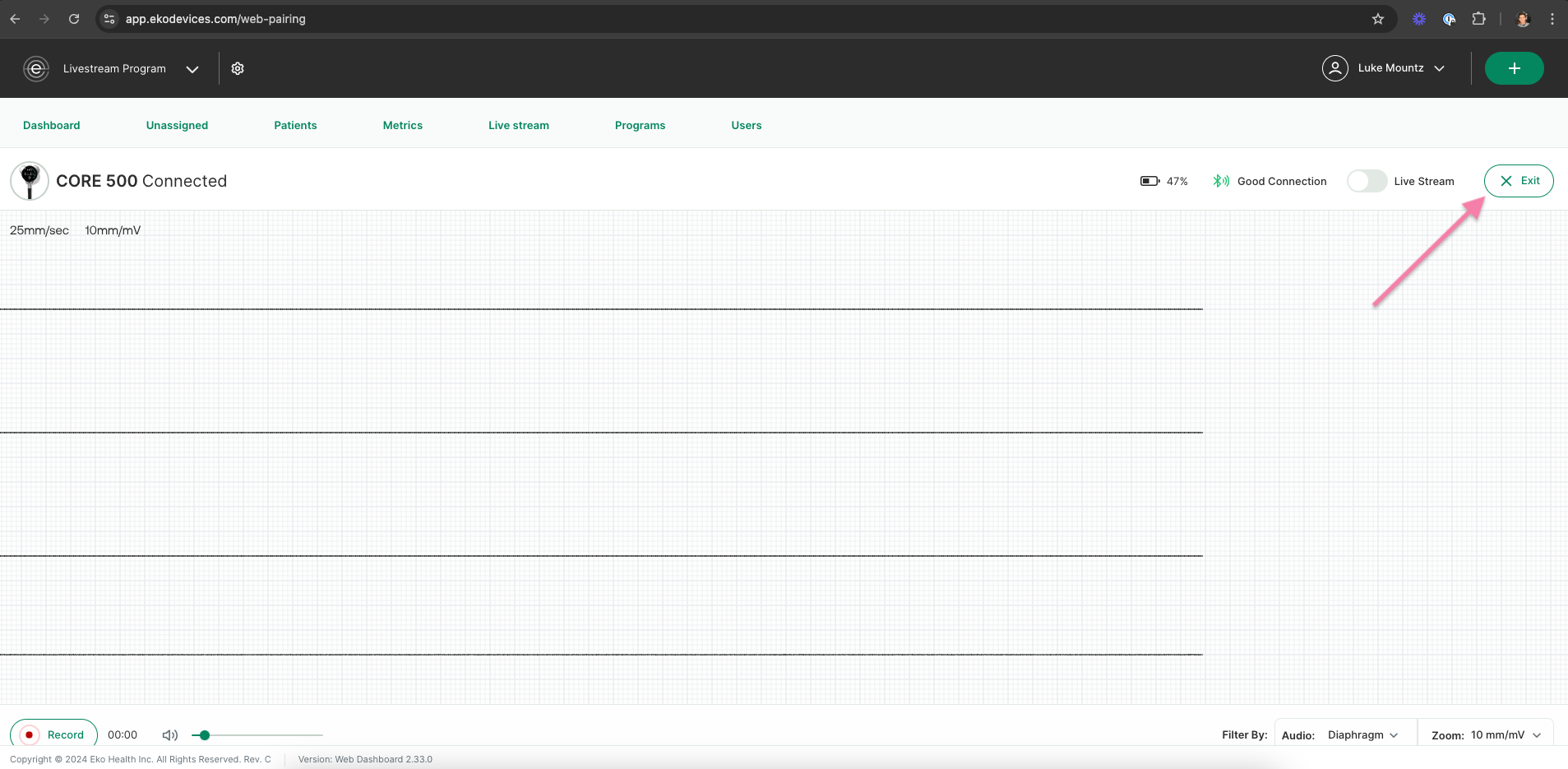

  • On the web pairing screen, click Exit.

  • Click another section in the left navigation bar.

Screenshot 2024-12-09 at 8.31.37 AM (2).png
  • Click Yes, exit session. Your device is disconnected.

LBL:

360 Rev.2.0

Date of Issue:

December 9, 2024
