You can take a recording using the Eko Dashboard and:
-
Preview it.
-

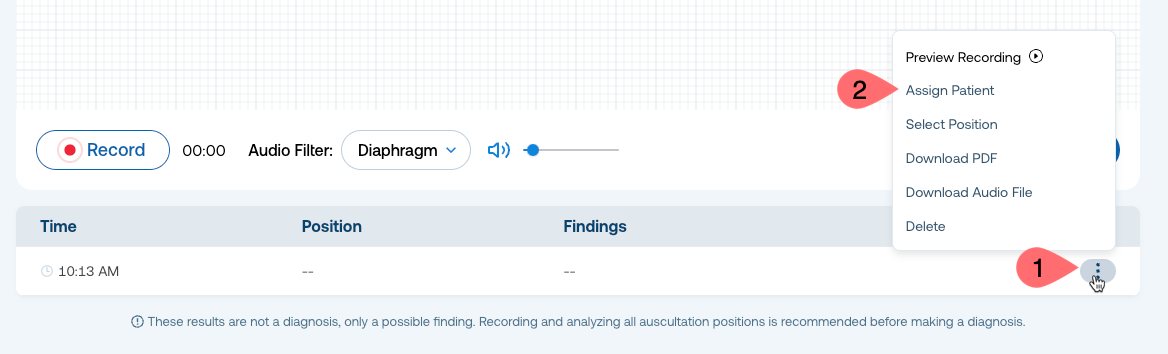

Assign it to a patient profile.
-
Select a position.
-
Share or print it by downloading the PDF.
-
Download the audio file.
-

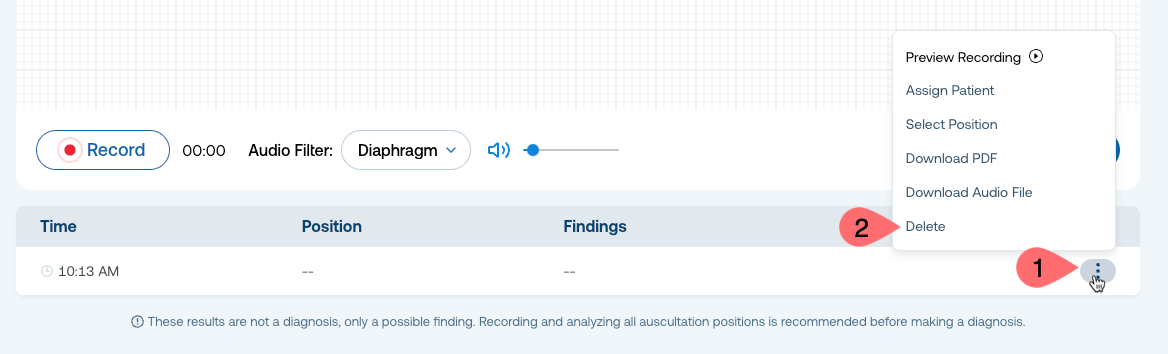

Delete it.
This workflow is typically used for recording-based programs where the patient may have metrics captured at one time that are saved and then reviewed by a provider later.

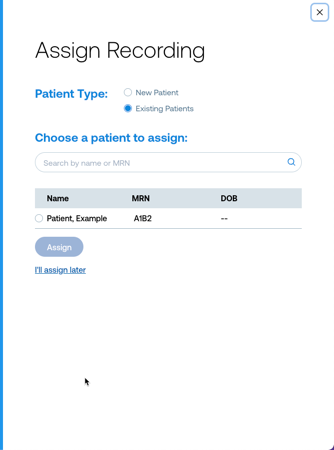

You can start a recording without it being assigned to a patient profile first, or you can start it directly from an existing patient profile. Unassigned recordings can be assigned to a patient profile later.
-
On the navigation bar, click Eko Device.
-
Pair the Eko device. See instructions here.
-
Place the device on the patient.
-
Click Record. The button changes to indicate recording in progress, and the timer next to the button shows the duration.
-
The saved recording displays below the waveform graph and is also added to the Unassigned Recordings screen of the Dashboard.
Tip
You can keep taking recordings on this screen as long as your session is active. The recordings will appear in the table below the waveform graph.
-

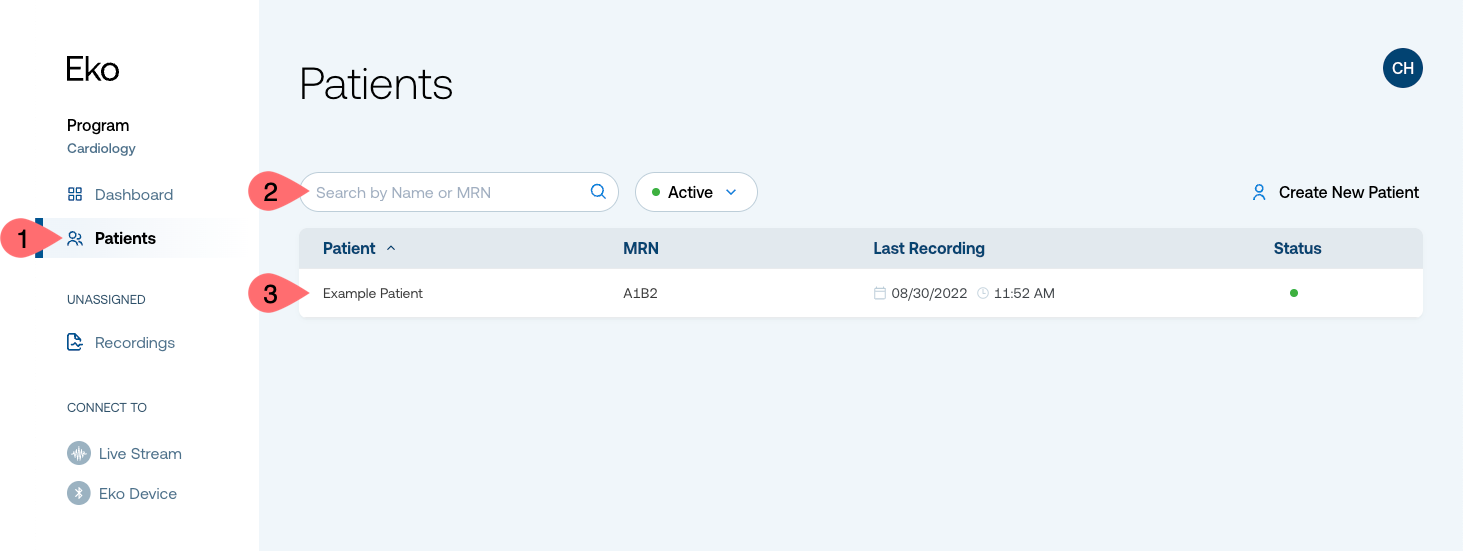

On the navigation bar, click Patients.
-
Search or filter for the patient.
-
Select the patient. The profile opens.
-

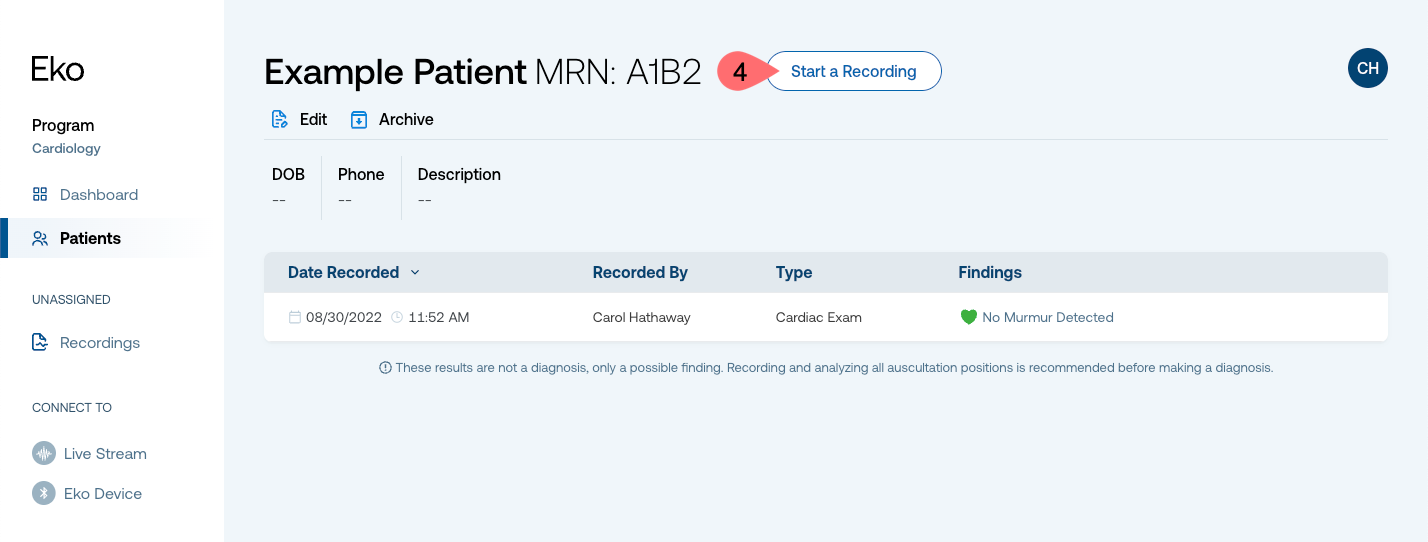

Click Start a Recording. The web pairing screen opens.
-
Pair your Eko device. See instructions here.
-

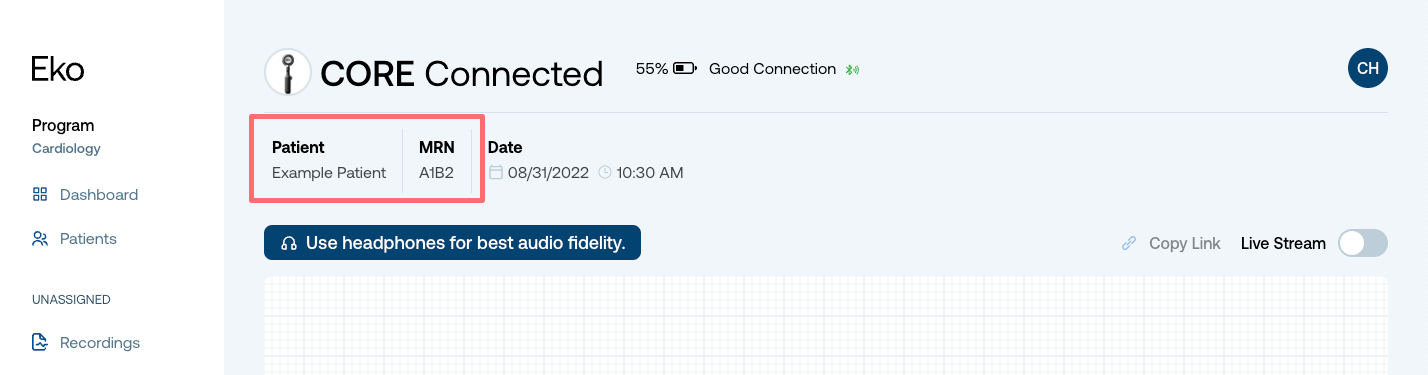

On the web pairing screen, note the patient’s information is shown.
-
Click Record. The button changes to indicate recording in progress, and the timer next to the button shows the duration.
-
The saved recording displays below the waveform graph and is also added to the patient profile.
-

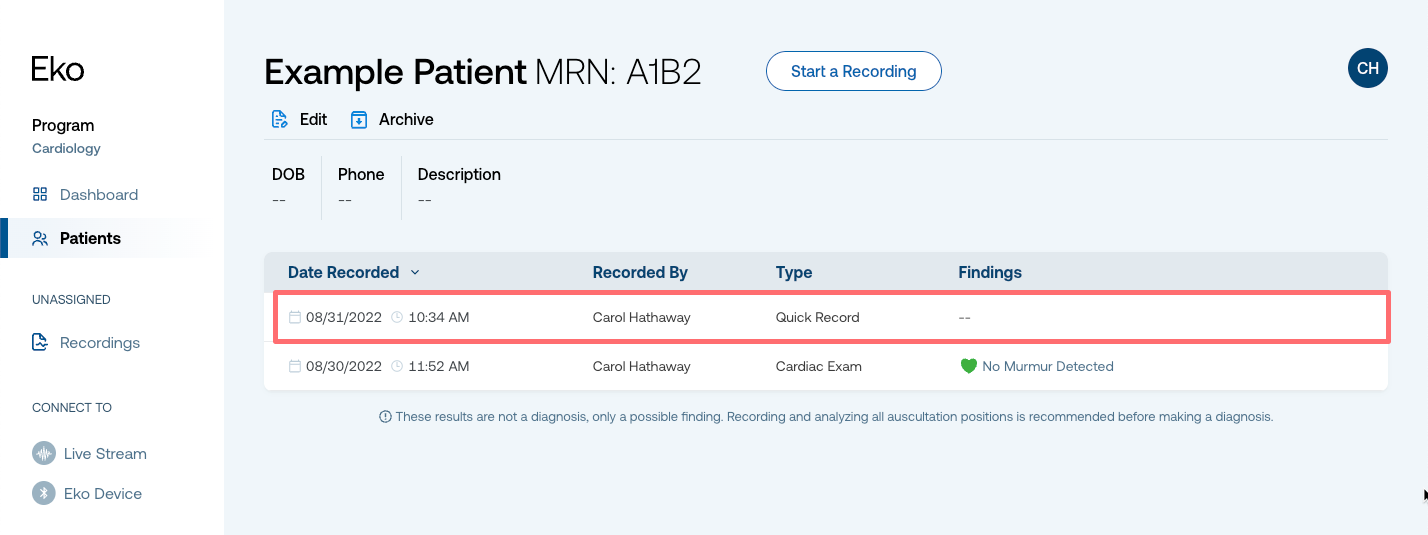

If you navigate back to the patient profile, the recording is now listed.
Tip
You can keep taking recordings on this screen as long as your session is active. The recordings will appear in the table below the waveform graph.

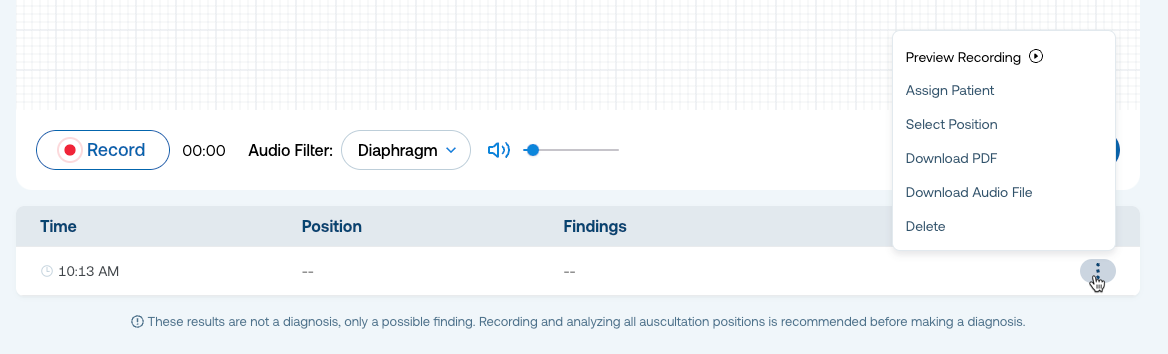

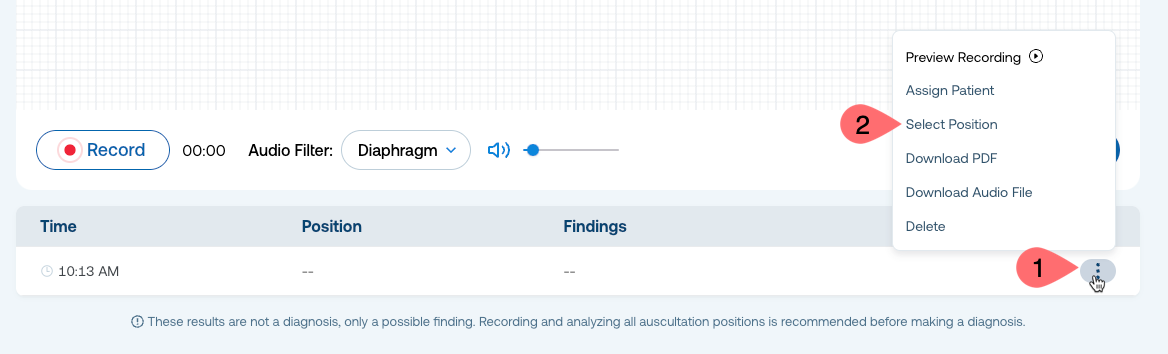

On the web pairing screen, you can manage recordings once they appear in the table below the waveform graph. Select the recording, then click the more menu with three dots to select an option from the menu. These are described here.

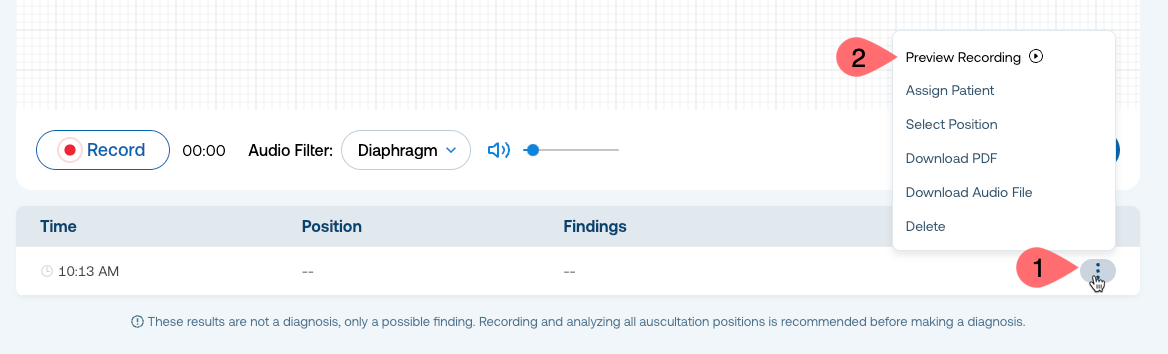

Click Preview Recording to open the recording in a new browser tab. If the recording is unassigned, it will appear as an unassigned recording. If the recording is assigned to a patient profile, it will appear with the patient’s information.

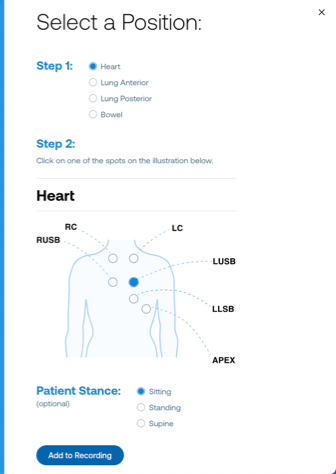

Click Select Position to open the Select a Position panel. Select from the various options, and click Add to Recording.
Click Download PDF to download the report to your computer for sharing or printing.

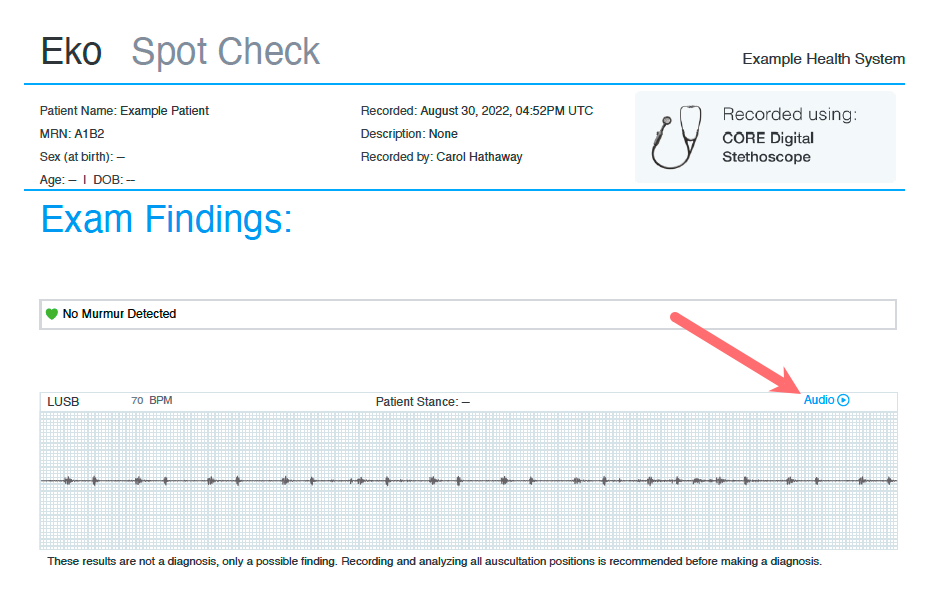

Click the Audio link on the report to open the recording in the Dashboard so it can be listened to.
Click Download Audio File to download the recording as a .wav file that can be opened in an audio player.
