Who is this for?
✓ Enterprise institutions with a subscription to the SENSORA™ platform
If you're a customer who purchased your own Eko device, go to the Eko Help Center.
You can see AI analysis results in the Eko App for all Eko devices, or right on the CORE 500™ display. AI analysis screens for:
-
Structural murmur detection
-
AFib analysis
-
Heart rate analysis
Eko AI analysis capability varies depending on the Eko device. Here's the breakdown of what's available for our devices:
|
CORE 500™ |
CORE™ and 3M™ Littmann® CORE Digital Stethoscope |
DUO™ |
|
|---|---|---|---|
|
|
|
|
|
|
Murmur |
Yes |
Yes |
Yes |
|
AFib |
Yes |
No |
Yes |
|
Tachycardia |
Yes |
Yes |
Yes |
|
Bradycardia |
Yes |
Yes |
Yes |
|
Abnormal rhythm |
Yes |
No |
Yes |
|
Unclassified rhythm |
Yes |
No |
Yes |
Analysis results show in the Eko App in these places:
-

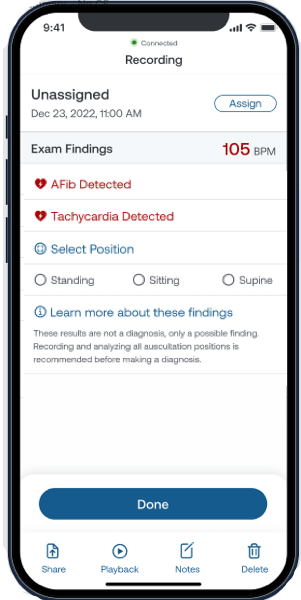

On the summary screen right after a recording or cardiac exam.
-

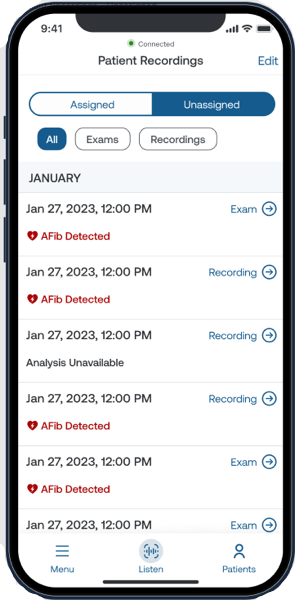

On the Patients tab, Unassigned Recordings screen.
-

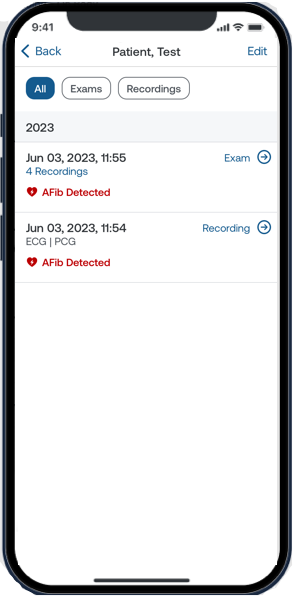

On the Patients tab, open an assigned patient's profile.
Analysis results show on the screen if:
-
You have the Recording Analysis setting in the Eko App turned on. Learn more here.
-
The recording is at least 15 seconds in length.
-
The CORE 500™ made skin contact for ECG-related results such as AFib.
See the full list of results you can see on the CORE 500™ screen.
Watch a video
Tip
The results you see on the device are only a summary. Use the Eko App for a detailed summary of the results.
For example, you see on the device that AFib was detected:

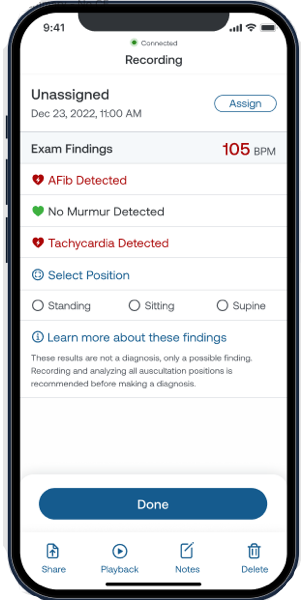

You open the Eko App for the full details:
The CORE 500™ Digital Stethoscope is for healthcare professionals only and can be paired with arrhythmia and murmur detection in the U.S. only.
|
LBL: |
0002098 Rev.2.0 |
|
Date of Issue: |
September 27, 2023 |
