Who is this for?
✓ Enterprise institutions with a subscription to the SENSORA™ platform
If you're a customer who purchased your own Eko device, go to the Eko Help Center.
You can start a recording from the DUO™ and keep your mobile device in your pocket. Or, you can start a recording from the Eko App.
Note
The DUO must be actively connected to the Eko App via Bluetooth in order to take recordings from the device or the Eko App.
To take a recording from the DUO™, you'll need to have the Record from Device setting turned on in the device settings.
-
Place the device on the patient.
-

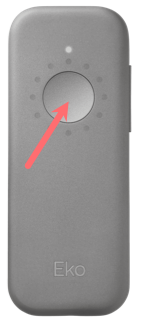

Double press the central control button, or, if you have the Record Automatically setting turned on, the recording starts when a good signal is detected.
-
You can verify the recording progress in the app if needed.
-
To manually stop the recording before the timer ends, double press the central control button again. Otherwise, the recording automatically stops after the length of time selected in the Recording Length setting in the Eko App.
-
Review and/or assign the recording to a patient in the Eko App. Here's how.
LBL: |
0002160 Rev.1.0 |
Date of Issue: |
June 26, 2023 |
